Leg: Place the sock top where the top of the top clamp is located at the midpoint of the sock top (Figure 5). Place the outside heel gore (Figure 6) at the center of the bottom clamp (Figure 7). Take care that the sock is not twisted beyond 90 degrees. Depress the foot pedal until the machine travel stops and record the reading from the display (Figure 8).

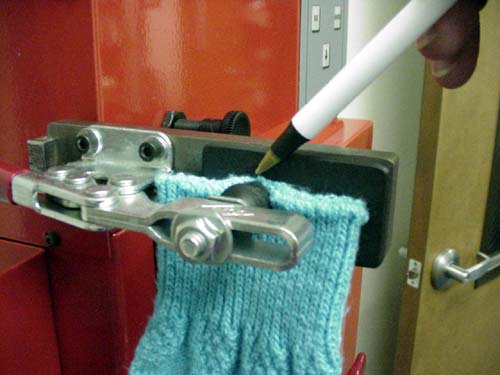

Figure 5

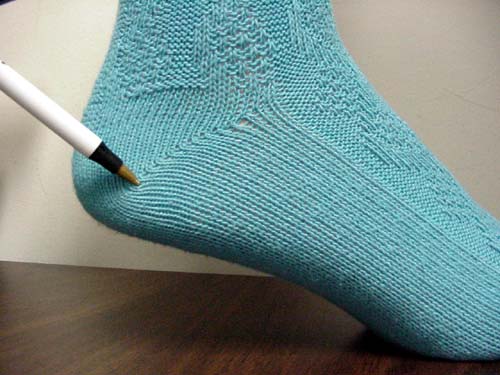

Figure 6
Figure 7

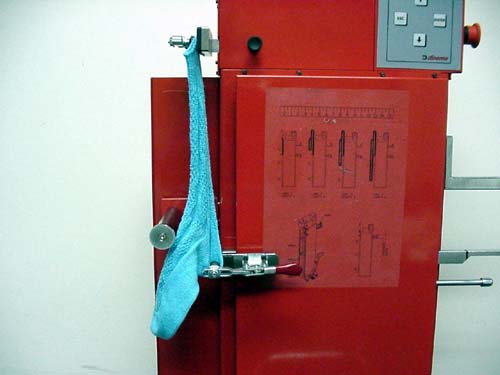

Figure 8
Foot: Place the sock outside heel gore (Figure 6) at the center of the top clamp (Figure 9). Place the outside toe gore (Figure 10) at the center of the bottom clamp (Figure 11). Take care that the sock is not twisted beyond 90 degrees. Depress the foot pedal until the machine travel stops and record the reading from the display (Figure 12).

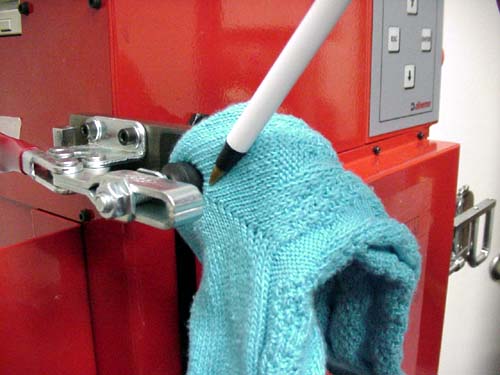

Figure 9

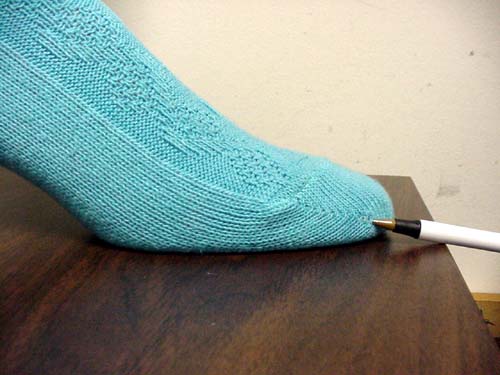

Figure 10

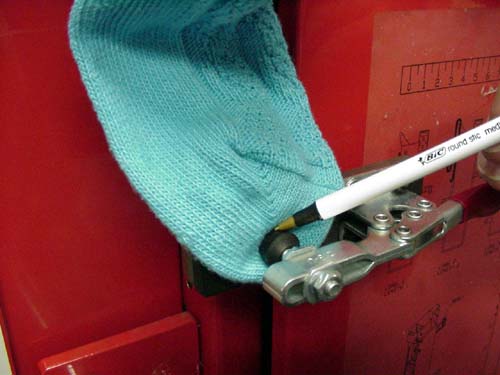

Figure 11

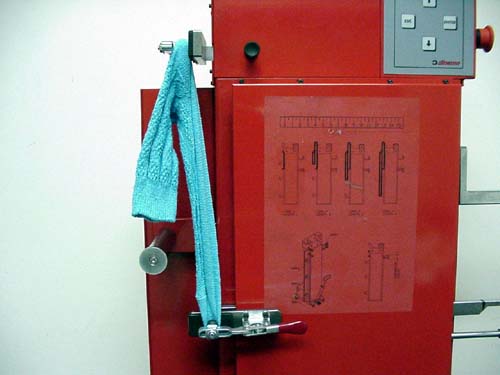

Figure 12
